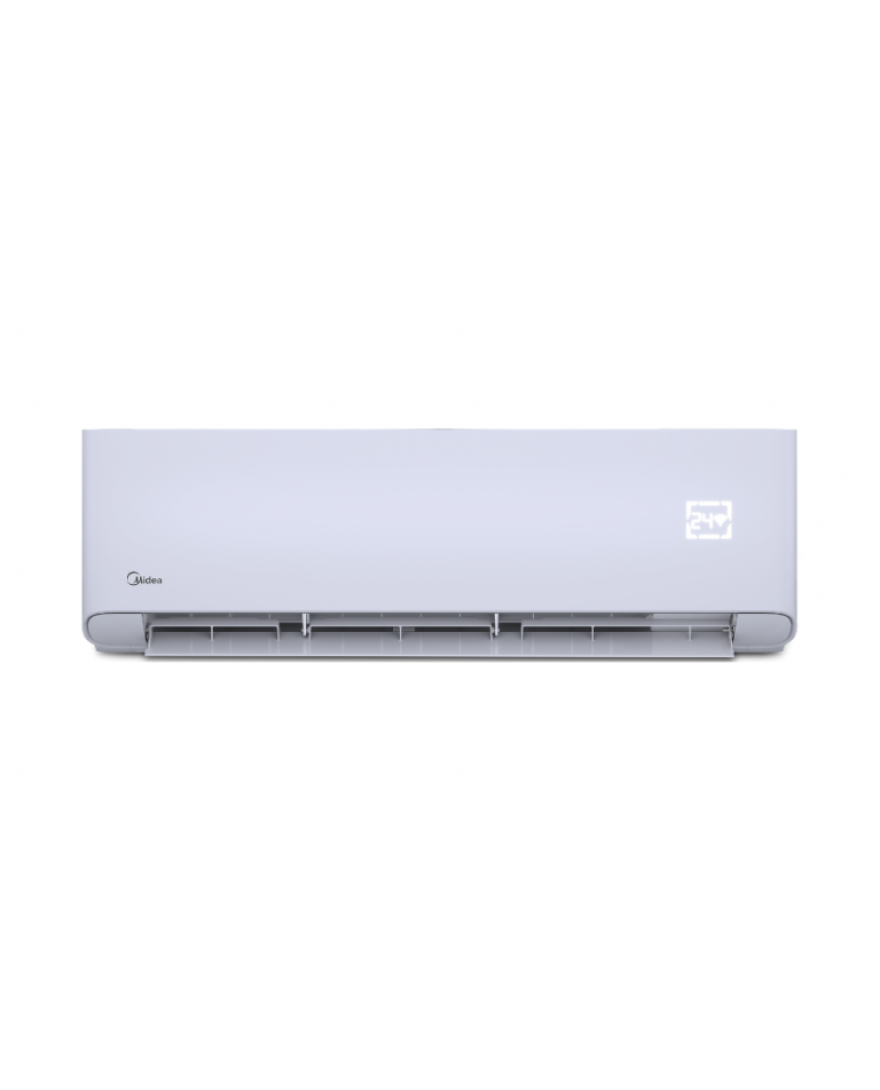

SANTIS PRO-X DLX 3 Star Split Inverter AC

Enjoy optimal cooling in every corner of your home with SANTIS PRO-X DLX, equipped with 4-Way Swing and 3D Cooling technology. The Dynamic LEDs enhance your decor and help to track energy usage. This 3-star rated inverter AC comes in 1.1 TR, 1.5 TR, and 2 TR capacities.

General

• Tonnage Category - 1.5 TR
• Max Capacity Range - 5760 Watts
• Full Load Capacity (100% Load Rated) - 5050 Watts
• Half Load Capacity (50% Load) - 2525 Watts
• Full Load Power Input (100% Load Rated) - 1590 Watts
• Half Load Power Input (50% Load) - 615 Watts
• Annual Power Consumption - 999.69 Units
• Label Period - 1st July 2022 – 31st Dec 2025
• BEE Star Rating - 3 Star
• ISEER Value - 3.91 W/W
• Rated Power Supply - 230V, 1 Phase, 50 Hz
• Rated Current - 7.0 Amp
• Net Weight - 10 kg (Indoor Unit) / 21.7 kg (Outdoor Unit)
• Air Flow Rate - 580 CFM
• Indoor Noise Level (H/M/L) - 44 / 41 / 35 dB
• Fan Motor (Indoor) - 5 Speed Levels
• Connecting Kit Pipe - Included
• Valve Size - 1/2" × 1/4"
• Moisture Removal Rate - 2 Kg/Hr

Dimensions

• Indoor Unit (Height) - 328 mm
• Indoor Unit (Width) - 870 mm
• Indoor Unit (Depth) - 227 mm
• Outdoor Unit (Height) - 540 mm
• Outdoor Unit (Width) - 790 mm
• Outdoor Unit (Depth) - 280 mm

Filters

• Top HD Filter (Santis Pro-X) - Yes
• PM 2.5 Micron Filter - Yes
• HD Filter - Not Available
• AG+ Nano Filter - Not Available

Cooling & Refrigerant

• Refrigerant - R32
• Air Direction Control - Yes
• High Ambient Working Temperature - Up to 54°C
• Stabilizer Free Operation - Yes (135V–280V, even at 48°C)
• Insta Cool / Super Turbo - Yes
• 6-in-1 Convertible Mode - Yes
• 4-in-1 Convertible Mode - Not Available

Smart Features

• Hidden Temperature Display - Yes

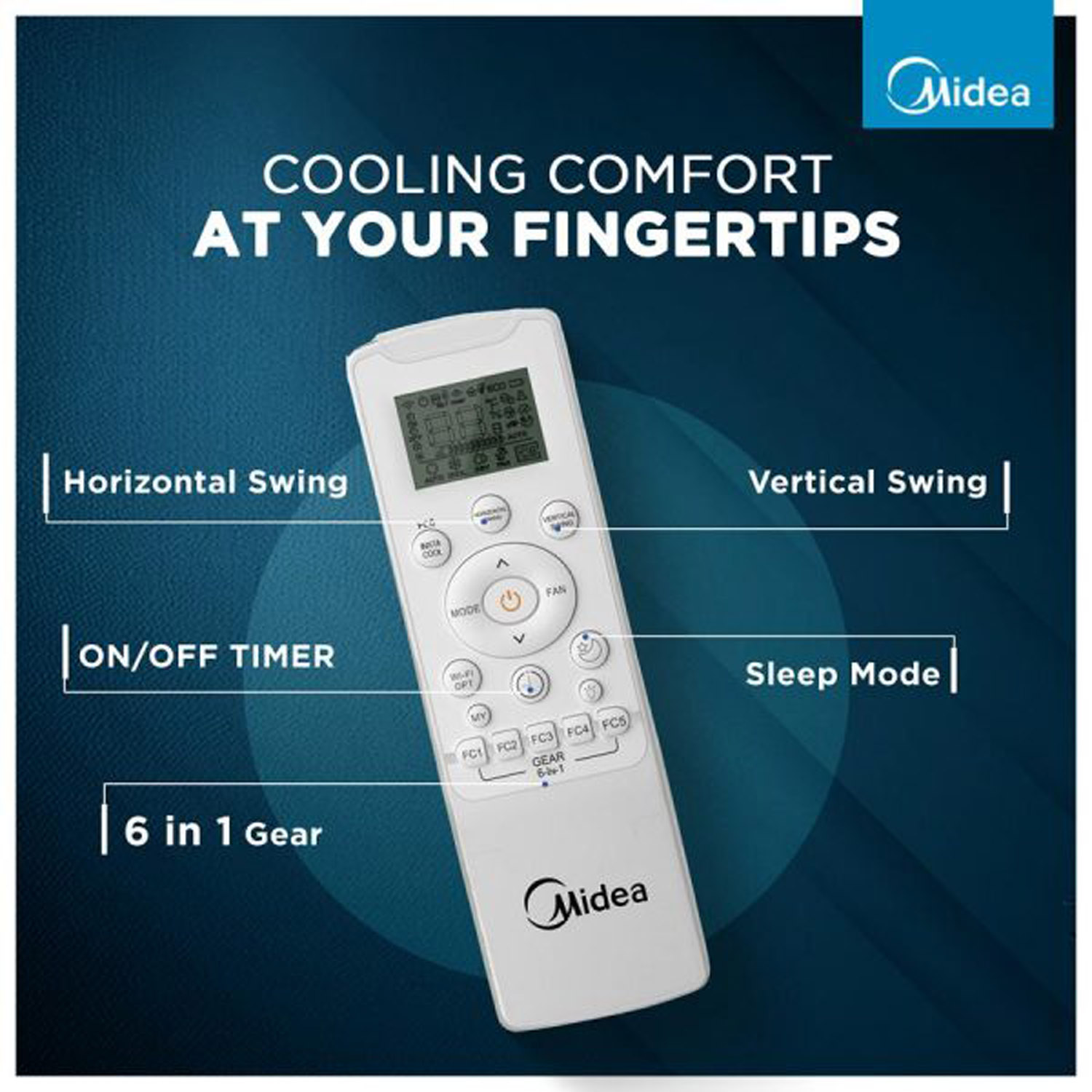

• LCD Remote Control - Yes
• Remote Backlit - Yes
• Auto On Timer - Yes
• Auto Off Timer - Yes
• Sleep Mode - Yes
• Follow Me Function - Yes
• My Mode (Favourite Mode) - Yes
• Auto Mode - Yes
• Auto Restart - Yes
• Auto Fan Speed - Yes
• Auto Swing - Yes
• 4-Way Swing - Yes
• Silent Mode - Yes
• Temperature Display On/Off - Yes
• KW Display - Yes

Protection & Maintenance

• Refrigerant Leakage Detector - Yes
• Intelligent CRF Alert - Yes
• Louver Position Memory - Yes
• Auto Cleaner - Yes
• Dry Mode - Yes
• Security Lock - Yes
• Double Drain (Easy Installation) - Yes
• Easy Installation Service Support Bracket (IDU) - Yes
• Anti-Corrosion Blue Coating - Evaporator Hairpin Inside
• Hydrophilic Blue Coil - Evaporator & Condenser

Connectivity

• Wi-Fi 2.0 (AI+) - Not Available
• Google Assistant Support - Not Available
• Amazon Alexa Support - Not Available

Additional Features

• Hidden Display - Yes
• Refrigerant Leakage Detection - Yes
• Stabilizer Free Operation - Yes
• Hydro Blue Coated Evaporator & Condenser - Yes
